Wind Generator Air to Air Indirect Cooling System

Wind power system background

Wind power is a kind of clean energy, with the characteristics of renewable, pollution-free, large energy and broad prospects. The development of clean energy is the strategic choice of all countries in the world.

However, if the air is directly fed into the generator cabin for cooling, the dust and corrosive gas will be brought into the cabin (Especially wind turbines installed offshore).

Indirect cooling system solution

The indirect cooling method can make the air from inside and outside perform indirect heat exchange to achieve the effect of cooling the wind generator cabin without bringing dust and corrosive gases from outside into the cabin.

The main component of the indirect cooling system is the BXB plate heat exchanger. In the BXB plate heat exchanger, two channels are separated by aluminum foil. The air in the cabin is closed circulation, and the outside air is open circulation. The two airs are doing heat exchange. The air in the cabin transfers heat to the outside air, which reduces the temperature in the wind generator. In addition, the air inside and outside the cabin will not be mixed due to the isolation of aluminum foil, which prevents dust and corrosive gases outside the cabin from being brought into the cabin.

Cooling effect analysis

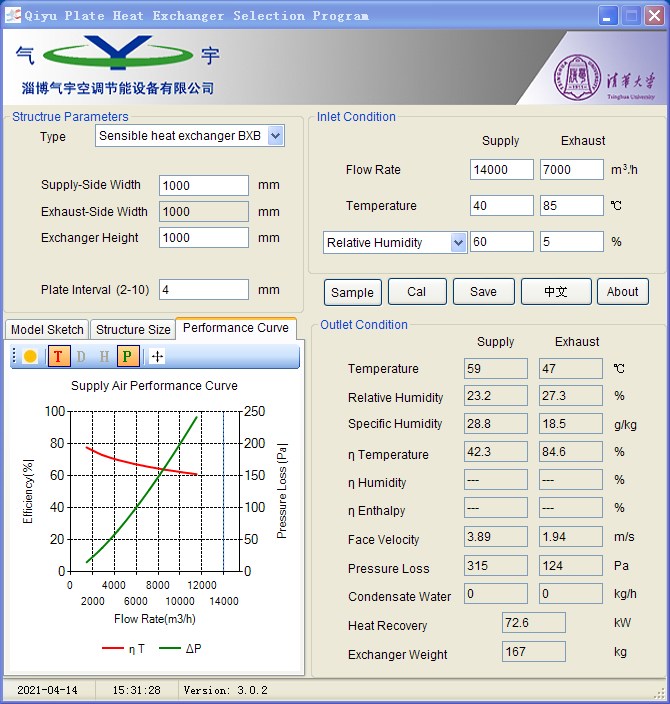

Taking a 2MW unit as an example, the motor's heat generation is 70kW, The circulating air volume in the engine room is 7000m3/h and the temperature is 85℃. The outside circulating air volume is 14000m3/h and the temperature is 40℃. Through the BXB1000-1000 plate heat exchanger, the air temperature in the cabin can be reduced to 47℃ and the heat dissipation capacity can reach 72kW. The relevant parameters are as follows:

Wind Generator Air to Air Indirect Cooling System(图1)

Introduction to indirect cooling system

Wind Generator Air to Air Indirect Cooling System(图2)

Wind Generator Air to Air Indirect Cooling System(图3)
